Other Name: Framed Glass Railing
Model: WA-RMG401R
Baluster Shape:Round
Material:Stainless steel; carbon steel,Aluminum
Installation method: Floor Mounted, Side Mounted
Fence: Glass
Glass type: Float glass,10mm, 12mm, 15mm, single tempered glass 5/16", 3/8″, 1/2″, 5/8″, 9/16″, laminated glass 10.76mm,13.52mm, 17.52mm, 21.52mm
Application range:Balcony,Deck, Terrace, Porch, Staircase, pool etc,.

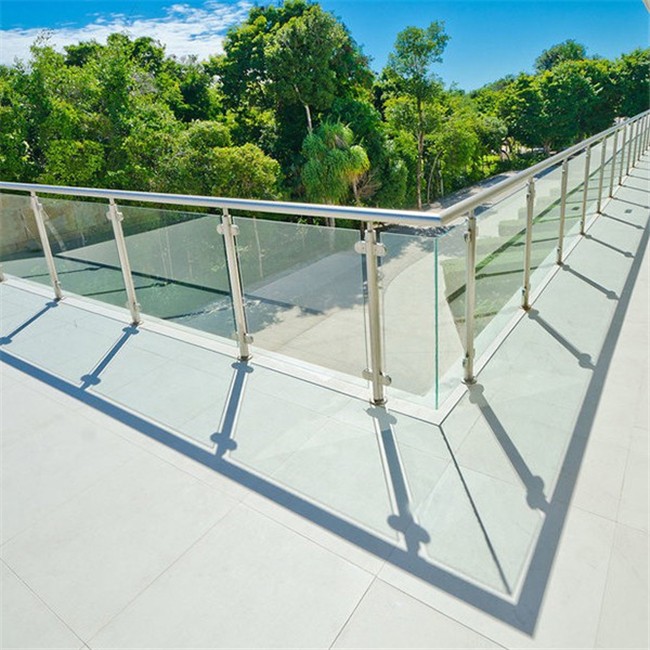

WilliamArchi Steel framed glass railing systems are specially designed two structural posts to hold a glass pannel. Use high quality carbon steel, 304ss, 316ss, 316Lss for the baluster post.
Aluminum Base Shoe Glass Railing or frameless glass channel railing is floor mounting glass channel railing system, also available for wall side mounting.
| Post Type: | Round, square,plate,U slot |
| Glass clamp or fixing parts: | Made by stainless, carbon steel,aluminum, rube, silicon, |
| Materails availble for post: | carben steel,304ss, 316ss,316Lss,aluminum alloy, |
| LED Light Info: | ø1-1/2″ or ø2″ with 3000K or 4000K LED, Medium or High intensity, Clear or Frosted lens |
| LED Light Application: | Balcony, terrace, floor, indoor, ourdoor both Ok |
| Round post size: | Dia 38mm, 42.4mm, 50.8mm, Height customzie |
| square post size: | W 40*40mm, 50*50mm,60*60mm, Height customzie |
| Surface Treatment: | SS Steel: satin, mirror, Carbon steel: powder coating, Aluminum: powder coating, oxidation, electroplating, |
| Package: | pp bag with paper box, packed into plywood box |
Railing glass panels with a singl glass thickness of 10mm(3/8”), 12mm(1/2”), 15mm(9/16”) and laminated glass thickness of 10.76mm,13.52mm, 17.52mm,Tempered safety glass with AS/NZS 2208, CE and SGCC certification.
| Glass Type: | float glass, tempered glass, laminated Glass, art glass,tinted glass |
| Float Glass Thickness: | 12mm, 15mm,19mm,25mm, |
| Sign Tempered Glass Thickness: | 10mm, 12mm, 15mm, |
| Laminated Glass Thickness: | 5+5mm, 6+6mm, 8+8mm, 10+10mm with PVB or SGP. |
| Surface Option: | frosted, sandblasting, refection,non |
| Color: | Clear,tinted, blue, grey, brown, red, light black, |
| Package: | plywood carton with protection |
| Installation Type: | On-top, Side mounted, |
| Shape Availble: | round, square, tube-bar |
| Materails Availble: | carben steel,304ss, 316ss,316Lss,aluminum, wood, PVC |
| Round Size: | Dia 25/42.4/50.8/60mm |
| square Size: | 30*30/40*40/50*50/60*60mm |
| Tube-bar plate: | 30*10/40*20/50*20/60*20mm |
| Surface Treatment: | satin, mirror, powder coating, electroplating,printing, |
| Package: | pp bag with plywood box. |
Using the clips with normal glass, or secure them to pre-drilled glass with a bolt for extra strength.
