Other Name: Post Glass Railing
Model: WA-RMG401R
Baluster Shape:Round
Material:Stainless steel; carbon steel,Aluminum
Installation method: Floor Mounted, Side Mounted
This type of railing consists of glass and metal post balustrade.
Size for Single Panel: Max width 1200mm(47''-1/4"), Max height 59''
Each glass panels will be hold by 2 pcs of metal post balustrade.
Our products are custom made using high quality materials.
WilliamArchi Steel framed glass railing systems are specially designed two structural posts to hold a glass pannel. Use high quality carbon steel, 304ss, 316ss, 316Lss for the baluster post.
This type of railing consists of glass and metal post balustrade.
Size for Single Panel: Max width 1200mm(47''-1/4"), Max height 59''
Each glass panels will be hold by 2 pcs of metal post balustrade.
Our products are custom made using high quality materials.
The advantage of this product is that it has a simple and beautiful structure and can show you an excellent outside view.

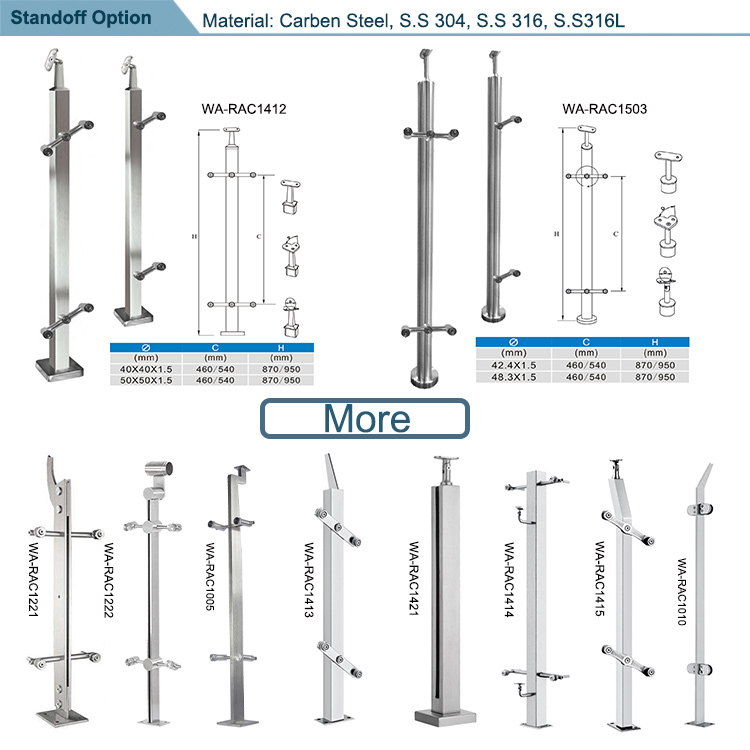

Stainless steel glass balustrade fittings Post Parts
Using a steel post gives that durability though without being too heavy, which makes it ideal for areas like decking where an iron-heavy post would place a dangerously high load on it. The lightweight nature of steel has made it such a common feature in so many building projects.
|
Post Type: |
Round, square,plate,U slot |
|
Glass clamp or fixing parts: |
Made by stainless, carbon steel,aluminum, rube, silicon, |
|
Materails availble for post: |
carben steel,304ss, 316ss,316Lss,aluminum alloy, |
|
Round post size: |
Dia 38mm, 42.4mm, 50.8mm, Height customzie |
|
Square post size: |
W 40*40mm, 50*50mm,60*60mm, Height customzie |
|
Single Plate post size: |
40/50/60/100mm width, 8/10/12/15/20mm thickness available. |
|
Double Plate post size: |
40/50/60/100mm width, 5+5/6+6/8+8/10+10mm thickness available. |
|
Surface Treatment: |
SS Steel: satin, mirror, Carbon steel: powder coating, Aluminum: powder coating, oxidation, electroplating, |
|
Installation Method: |
floor mount, side mount ( fascia mount), core mount, |
|
Package: |
pp bag with paper box, packed into plywood box |
Stainless steel glass balustrade fittings framed glass railing glass details
Railing glass panels with a singl glass thickness of 10mm(3/8”), 12mm(1/2”), 15mm(9/16”) and laminated glass thickness of 10.76mm,13.52mm, 17.52mm,Tempered safety glass with AS/NZS 2208, CE and SGCC certification.
|
Glass Type Available: |
tempered glass, laminated Glass, float glass, art glass, |
|
Sign Tempered Glass Thickness: |
10mm, 12mm, 15mm, |
|
Laminated Glass Thickness: |
5+5mm, 6+6mm, 8+8mm,10+10mm, 12+12mm or Customize |
|
Float Glass Thickness: |
10mm, 12mm, 15mm avail |
|
PVB Laminated Filler: |
0.75mm, 1.14mm, 1.52mm, 1.9mm available |
|
SGP Laminated Filler: |
0.89mm, 1.52mm, 2.28mm available |
|
Surface Option: |
frosted, sandblasting, non |
|
Color: |
Clear,ultrawhite, tinted, blue, grey, brown, red, light black, |
|
Glass Package: |
plywood carton with protection |
Post Glass Railing Handrail
|
Installation Type: |
On-top, Side mounted, |
|
Shape Available: |
round, square, tube-bar, |
|
Materails Available: |
304ss, 316ss, 316Lss, carben steel, aluminum, wood, PVC |
|
Round Size: |
Dia 25/42.4/50.8/60mm |
|
Square Size: |
30*30/40*40/50*50/60*60mm |
|
Tube-bar: |
30*10/40*20/50*20/60*20mm |
|
Surface Treatment: |
satin, mirror,powder coating, electroplating,printing(wood) |
|
Package: |
pp bag with plywood box. |
Post Glass Railing Handrail Brackets
Railing brackets can be used for holding the handrail on post baluster or on glass railing fence. Also on wall at stairway place.
Post Baluster Glass Railing Handrail Connector
Railing handrail connector is used for joint railing handrail together as longth limited or coner place which is not straight.
Post Baluster Glass Railing Handrail End Plug
Railing handrail end plug is used at the end of the handrail, as a decorative parts to cover the ends for handrail.
Glass Clamp Options For Post Glass Railing
Glass clamp are used between to pieces of glass. This design is to reinforce railing glass panel. Also can make the railing glass alignment.
Base or Base Cover For Post Glass Railing
Base made by a piece of metal or parts, the base will be welding to baluster post or installed to post. Base cover as a decorative part to cover the screws of the base.
WilliamArchi is focus on high quality construction hardware design and manufacture, development and production of stainless steel glass balustrade fittings and balustrade systems. We have full range products of railing and balustrade fittings, such as mateal post, glass clamps, handrail brackets, tube connector, top-rail tubes, slot baluster, glass railing, glass railing fence etc. Please contact me for customize WA-RBG1002 balustrade glass railing .
